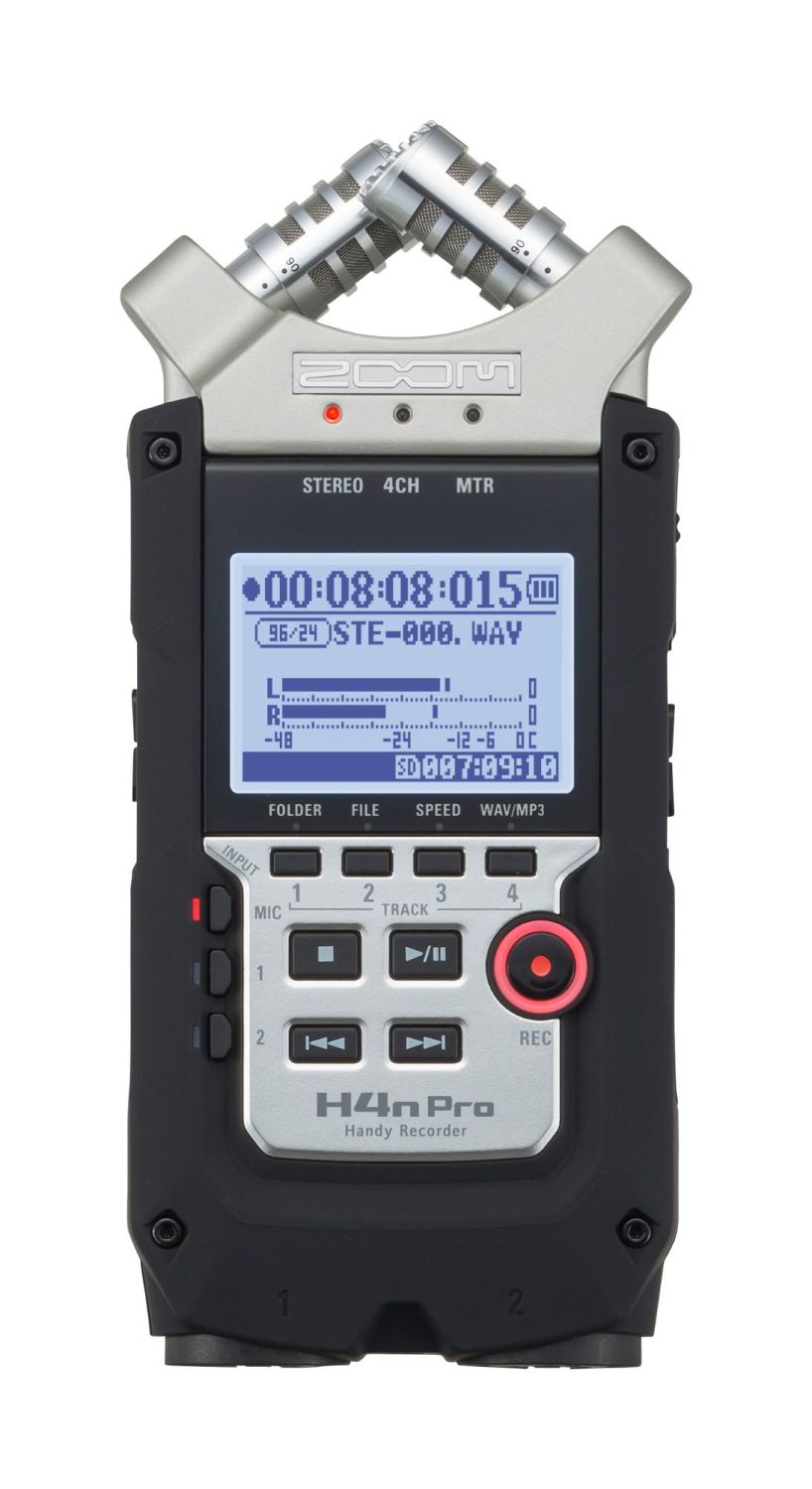

Highly portable audio recorder with exceptional audio quality. The Zoom H4N Pro Recorder is the perfect portable recorder for music, films, podcasts and more.

The new H4N Pro offers four-track audio recording with advanced X/Y microphones, incredibly natural-sounding preamps and a super-low noise floor, along with USB interface capabilities. The new and improved 1.9'' backlit LCD display ensures user-friendly operation even in dimly lit environments.

Providing the essential combination of versatility, portability and superior audio quality, the H4N Pro is the new gold standard in field recording.

The filmmaker's favourite

The H4N Pro is packed with features that make it perfect for capturing audio for film productions. The onboard X/Y microphone produces incredible stereo imaging while the two combo input jacks allow you to use your favourite microphones as well. Additionally, the headphone/line output jack is ideal for sending high-definition stereo audio directly to your camera.

Perfect for capturing live performances

Capable of handling up to 140dB SPL, the H4N Pro can easily record everything from heavy metal to bass-heavy EDM. Now you can take line-level stereo audio from your mixing console and capture room ambience with the X/Y microphones, putting your listeners front row center.

Mobile studio

With overdubbing and punch-in features, as well as studio-quality instrument effects and emulators, you can create songs from start to finish with the H4N Pro. This handy recorder also functions as a 2-in/2-out USB audio interface, ensuring complete compatibility with your favourite recording/editing software - or why not start creating with the included Cubase LE8 software.

High-performance mic preamps

Featuring the same high-performance, low-noise mic preamps as Zoom acclaimed H5 and H6, the H4N Pro offers recording and playback at resolutions up to 24-bit/96kHz.

Built-in stereo recording

The X/Y stereo recording covers a wide area while capturing sound sources in the center with clarity and definition. The two unidirectional condenser microphones can easily be changed from 90 degrees to 120 degrees, allowing you to choose between a tightly focused stereo image and a wider image simply by twisting the capsules.

Portable form factor

The new rubberized, ergonomic body is perfect for use in the field or with a camera, while new locking connectors ensure your cables stay secure. Incredibly portable, the H4N Pro can travel anywhere with you, ensuring you never miss a moment.

Three ways to record

The Stereo Mode utilises the built-in X/Y microphones (or external mics) and is suitable for recording live performances, acoustic instruments, dialogue and more. In 4CH mode, the H4N Pro allows you to record with both the X/Y microphones and two external inputs simultaneously, suitable for capturing live room sound and a stereo feed at the same time. Finally, MTR Mode (Multi-track) transforms the H4N Pro into a four-track studio with built-in effects, overdub functions and the ability to work with previously recorded sound files.

Editing and recording software included

The H4N Pro comes complete with free download licenses for Steinberg's Cubase LE music production software and WaveLab LE audio editing software. Providing you with a complete audio production toolkit, now you can create your own audio utilising the Pro's USB audio interface function while also expanding your own capabilities with Steinberg's renowned software.

What's Included

• Zoom H4n Portable Recorder
• Protective Case
• 2 x AA Batteries
• Operation Manual
• Steinberg Cubase LE8 for Mac OS X 10.9/10.10 and Windows 7/8/8.1
• WaveLab LE8 for Mac OS X 10.8/10.9/10.10 and Windows 7/8/8.1/10

Features

• Four-track simultaneous recording
• High-fidelity mic preamps
• Built-in X/Y stereo microphones, adjustable between 90° and 120°
• Record up to 140 dB SPL with X/Y microphones
• Two mic/line level inputs with XLR/TRS combo connectors
• Stereo 1/8'' mic input mini phone jack
• +24 or +48V phantom power for main inputs and plug-in power (2.5V) via Mic/Line mini phone jack
• Output/headphone jack with dedicated volume control
• New rubberized and ergonomic body with improved 1.9'' backlit LCD display
• Built-in reference speaker for fast playback
• Records directly to SD and SDHC cards up to 32 GB
• Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Onboard Mid-Side decoding
• Internal mixdown: four-track to stereo and stereo to dual mono
• Up to 99 marks per recording
• Built-in effects, including compression/limiting, low-cut filtering, modulation, reverb/delay and amp models
• Normalize (maximum gain) and Divide (file splitting) functions
• Chromatic tuner and metronome
• Loop playback with user-defined start and stop points
• Variable playback speed, from 50 to 150 , without affecting pitch
• Variable pitch without affecting playback speed
• USB port for file transfer to and from computer
• 2-in/2-out USB audio interface for PC/Mac computers
• Mounts to mic stand or tripod, or directly to DSLR with optional Hot Shoe adapter
• Runs on 2 standard AA alkaline or NiMH rechargeable batteries with up to 6 hours of operation (up to 10 hours in Stamina mode)

Specifications

• Simultaneous Recording: 2 - Stereo Mode / 4 - 4CH Mode / 2 - MTR Mode
• Simultaneous Playback: 2 - Stereo Mode / 4 - 4CH Mode / 4 - MTR Mode
• Recording Time 4GB (SDHC): Approx. 380 minutes WAV 44.1kHz, 16-bit Stereo
  • Approx. 68 hours MP3 44.1kHz, 128 kpbs Stereo
• Projects: 1000/Card
• Locate Functions: Hours / Minutes / Seconds / Milliseconds
• Other Functions: Punch-In/Out, Bounce, A-B Repeat
• Effect Modules: 2
  • Stereo/4CH Mode: Lo Cut, Comp/Limiter
  • MTR Mode: Preamp Module, EFX Module
• Types: 53
• Patches: 60
• Tuners: Chromatic, Guitar, Bass, Open A/D/E/G, DADGAD
• Metronome Sound Sources: 5
• Variable Beat: 1/4 - 8/4, 6/8, Unaccentuated
• Tempo: 40.0 - 250.0 BPM
• A/D Conversion: 24-bit x 128 Oversampling
• D/A Conversion: 24-bit x 128 Oversampling
• Recording Media: SD Card or SDHC Card
  • SD Card: 2 MB - 2 GB
  • SDHC Card: 4 GB - 32 GB
• Display: 128 x 64 Dots Full-Dot Backlit LCD
• Dimensions: 73mm x 157.2mm x 37mm (W x D x H)
• Weight: 294g

Inputs

• Inputs: XLR Balanced / Standard Phone Unbalanced Combo Jack
• Input Impedance:
  • Balanced Input: 3k Ohms or More
  • Unbalanced Input: 470k Ohms or More
• Input Gain:
  • Balanced Input: -16dB to +43dB
  • Unbalanced Input: -30dB to +32dB
• Built-In Stereo Mic: Unidirectional Condenser Microphone
  • Sensitivity: -45dB/1 Pa at 1kHz
  • Input Gain: -16dB to +51dB
  • Maximum Sound Pressure Input: 140dB SPL
• External Mic: Mini Stereo Phone Jack
  • Input Impedence: 2k Ohms or More
  • Input Gain: -16dB to +51dB

Outputs

• Line/Phone Load Impedance: 10k Ohms or More
• Line/Phone Output Level: -10dBu
• Phone: 20mW + 20mW (Into 32 Ohms Load)
• Monaural Speaker: 400mW 8 Ohms
• Phantom Power: 48V, 24V, OFF
• USB: USB 2.0 High Speed Mass Storage Class Operation, Audio Interface Operation
• Power Requirements: DC 5V 1A AC from AC Adapter (Zoom AD-14), 2 x AA Batteries
• Continuous Recording Time:
  • Stereo Mode: Using built-in mics at 44.1kHz/16-bit without headphones connected, about 6 hours using batteries or about 8 hours using NiMH batteries
  • Stamina Mode: Using built-in mics at 44.1kHz/16-bit without headphones connected, about 10 hours using batteries or about 12 hours using NiMH batteries
